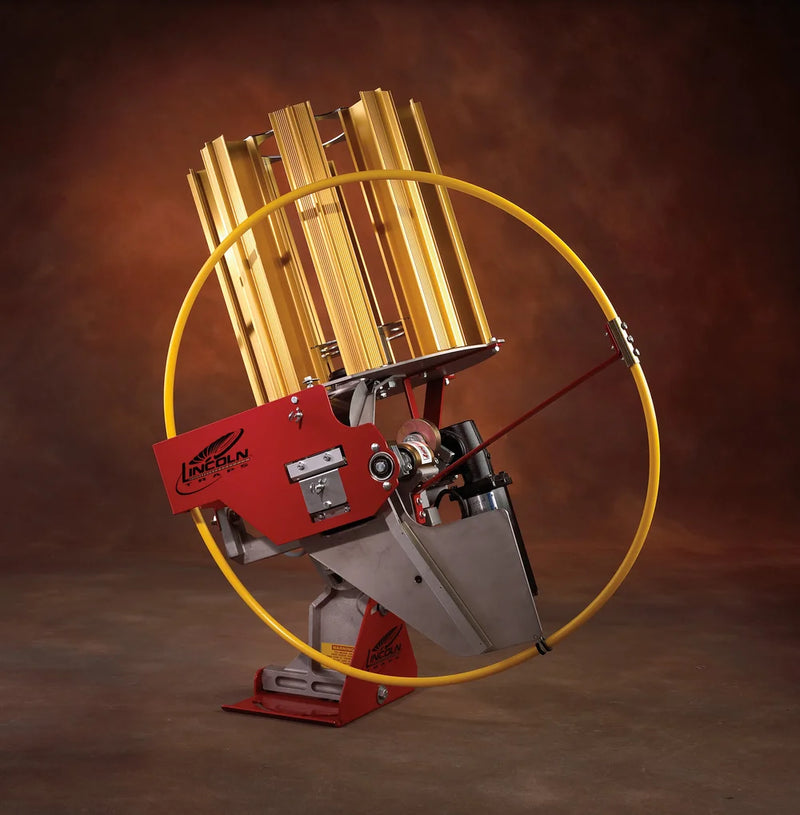

Lincoln Traps - Infinity 90MM Chandelle/Teal - Trap Machine

The Infinity 90 mm Chandelle / Teal Trap is one of the specialty machines offered in the Lincoln Automatic lineup.

The Infinity 90 mm Chandelle / Teal Trap is a commercial-grade machine, designed to reliably throw a 90 mm target in a variety of presentations. 90 mm Chandelle / Teal machines can add an extra level of difficulty to any commercial or home range. This machine is great for sporting clays courses, 5–stands, and personal use.

Adjustments The 90 mm Chandelle / Teal is a manually adjusted machine. Once adjusted to the desired position, it will continue to replicate the same target flight path. All position and spring tension adjustments can be done with a ¾" wrench. The machine has a total of 25° of tilt adjustment and 75° of total elevation adjustment.

Springs Three different springs are available for this trap. The Gray spring yields the slowest target speed and shortest throwing distance. The Yellow spring results in moderate target speed and throwing distance. The Blue spring provides the fastest target speed and furthest throwing distance. One spring is included with each machine; however, springs can be changed at any time for additional versatility. Spring choice is selected at the time the order is placed.

Magazine The 90 mm Chandelle / Teal machine holds 400 90 mm targets. As of February 2026, most units feature a new welded magazine design.

Power All Lincoln Automatic machines require 12 Volt power, which can be supplied in multiple ways. Batteries are a common method of powering machines; the ODYSSEY ODX-AGM24M is recommended, but similar battery models are also suitable. The minimum battery requirement is a Marine Grade Deep Cycle Group 24 with a minimum of 500 CCA and 800 MCA. A Group 27 or 31 sealed battery is recommended for best performance.

Batteries require charging, which can be done using a plug-in battery charger or a regulated solar panel. Solar panels add convenience as they eliminate the need to move batteries from machines to chargers. A regulated 20-watt solar charging kit (SW25WA) is available and works with any 12 VDC battery.

If the machine will be located in a house or near a power source, a transformer is an option for powering the machine. The PM45A transformer package is compatible with all Lincoln Automatic machines.

Warranty A 5 year warranty is offered on the clutch, with a 2 year warranty on the rest of the machine. This warranty does not include normal wear items or damage due to weather or natural disasters. Technical support is available for the life of the machine.

Release Firing the machine is via a release cord or a Long Range Wireless Trap Release. Release cords can be made to custom lengths per customer request.
