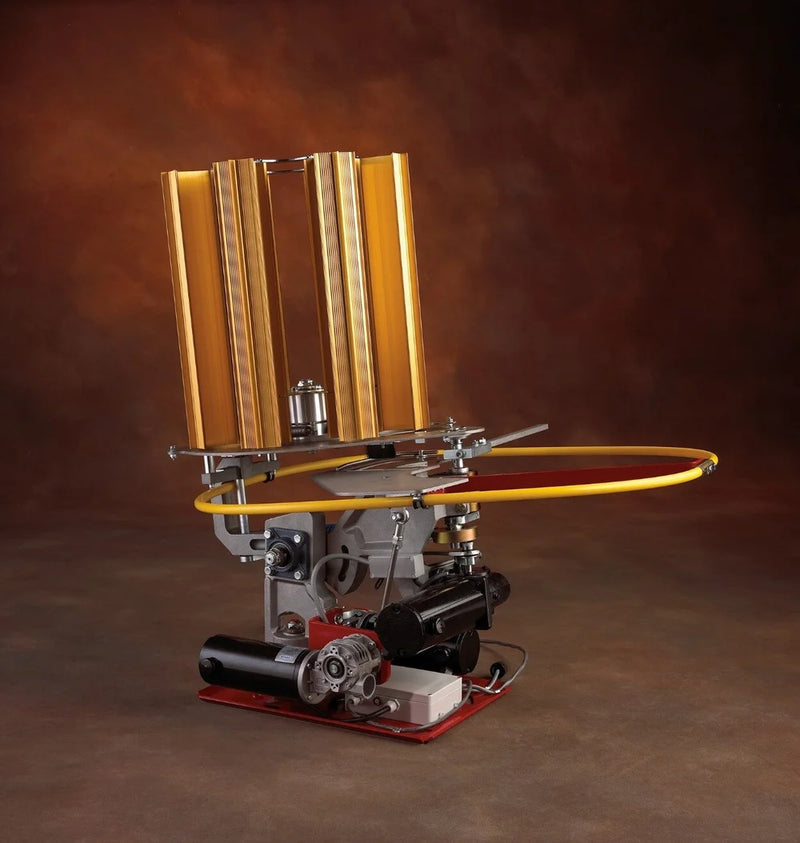

Lincoln Traps - Infinity Wobble 10 Column - Trap Machine

Here's the 10-column version, with the trap weights matched to the 10-column configurations (AW2002400SH and AW2002500).

Adjustments The Wobble has two additional motors which allow the machine to automatically change the target angle and elevation. Both the angle and elevation adjustments can be controlled from an included wired handheld unit or using a Long Range Wireless Wobble controller (not included). The angle and elevation motors can be activated separately or simultaneously.

• Up to 22 degrees of vertical travel
• Up to 58 degrees of horizontal travel

The spring must be manually adjusted on this machine. The Wobble does not have the capability to tilt.

Springs Three different springs are available for this trap. The Gray spring yields the slowest target speed and shortest throwing distance. The Yellow spring results in moderate target speed and throwing distance. The Blue spring provides the fastest target speed and furthest throwing distance. One spring is included with each machine; however, springs can be changed at any time for additional versatility. Spring choice is selected at the time the order is placed.

Release Firing the machine is via a release cord or a Long Range Wireless Trap Release. Release cords can be made to custom lengths per customer request.

Trap Weights

• AW2002400SH — 169 pounds
• AW2002500 — 178 pounds

Power All Lincoln Automatic machines require 12 Volt power, which can be supplied in multiple ways. Batteries are a common method of powering machines; the ODYSSEY ODX-AGM24M is recommended, but similar battery models are also suitable. The minimum battery requirement is a Marine Grade Deep Cycle Group 24 with a minimum of 500 CCA and 800 MCA. A Group 27 or 31 sealed battery is recommended for best performance.

Batteries require charging, which can be done using a plug-in battery charger or a regulated solar panel. Solar panels add convenience as they eliminate the need to move batteries from machines to chargers. A regulated 20-watt solar charging kit (SW25WA) is available and works with any 12 VDC battery.

If the machine will be located in a house or near a power source, a transformer is an option for powering the machine. The PM45A transformer package is compatible with all Lincoln Automatic machines.

Warranty A 5 year warranty is offered on the clutch, with a 2 year warranty on the rest of the machine. This warranty does not include normal wear items or damage due to weather or natural disasters. Technical support is available for the life of the machine.

Trap House Mounting Requirements Trap house plans are available on request.

Magazine The Wobble is offered with two different magazine options:

• 400 Capacity (10 column) — 39" height clearance required. Perfect for trap houses where height may limit machines with taller magazines.
• 500 Capacity (10 column) — 45" height clearance required. Provides increased target capacity for more shooting between refilling, but please consider the height requirement.
