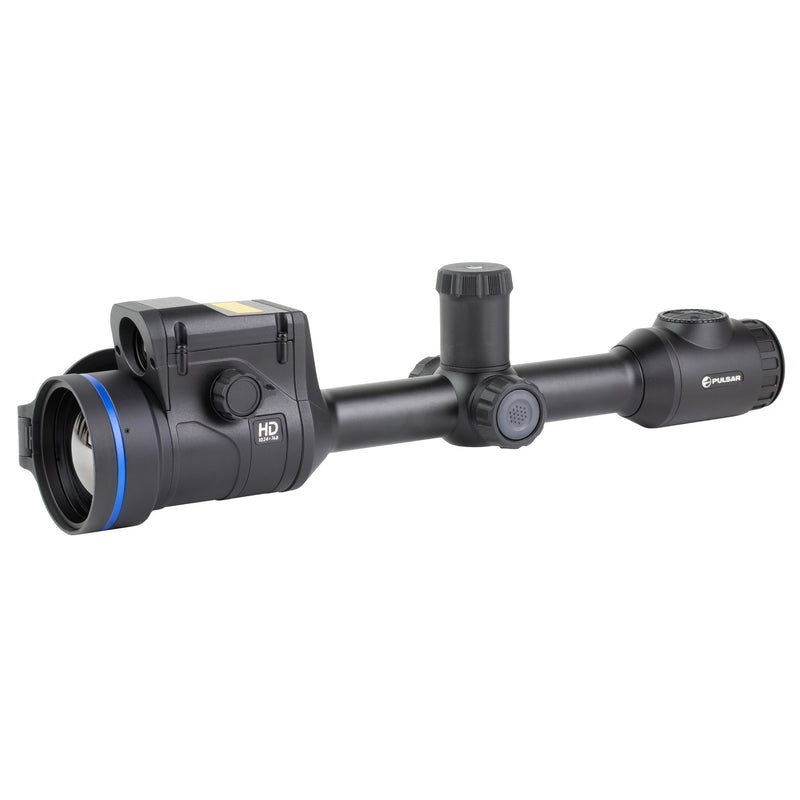

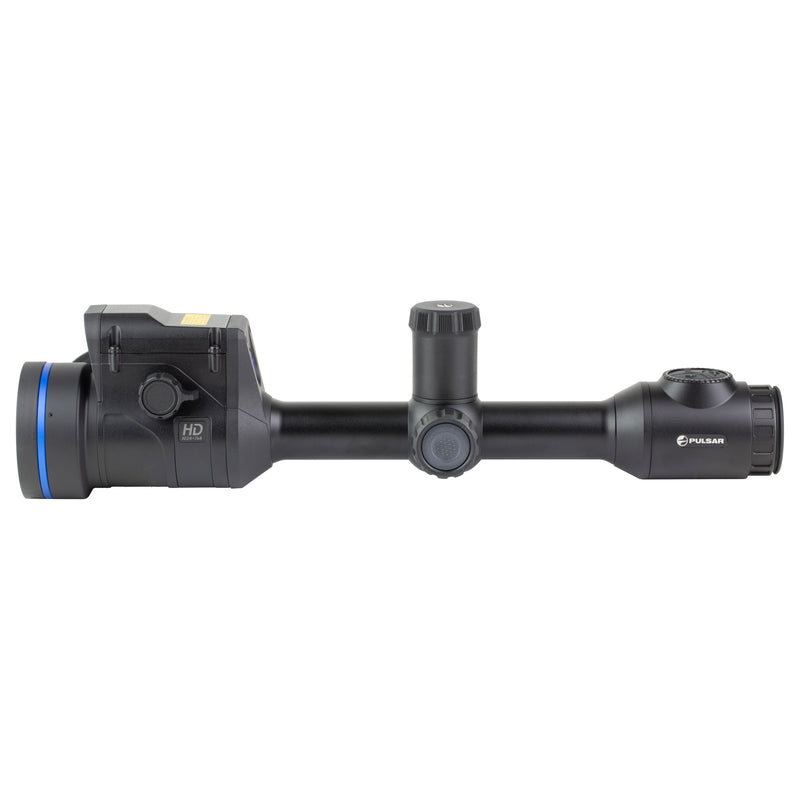

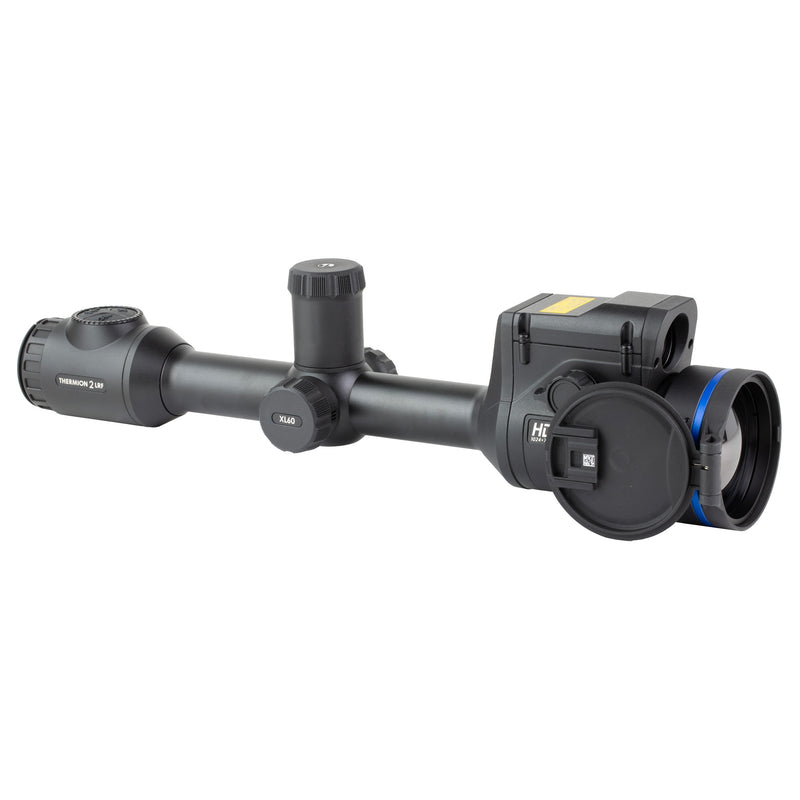

Pulsar - THERMION 2 LRF XL60 - 2.5X-20X Magnification - Thermal Optics
FREE SHIPPING
The XL, or HD resolution thermal imaging sensor, combined with the 60 mm optics of the Pulsar Thermion 2 LRF XL60, make it the optimum choice for pest and predator control.
Here it is, organized with each category heading bolded. This pastes cleanly into Shopify's rich text editor (the bold will carry over) and renders as readable spec blocks.
Reticle
Click range, H/V, mm at 100m: 3200/3200
Click value, H/V, mm at 100m: 16 mm – 2.5x, 8 mm – 5x, 4 mm – 10x, 2 mm – 20x
Number of preloaded reticles: 10
Sensor
Type: Uncooled
Resolution, pixels: 1024x768
Pixel pitch, µm: 12
Sensor NETD, mK: < 35
System NETD, mK: < 20
Frame rate, Hz: 50
Optics
Objective lens: F60/1.1
Magnification, x: 2.5 – 20
FOV (HxV), degrees: 11.7
FOV (HxV), m@100m: 20.5
Eye relief, mm: 65
Display
Type: Micro-OLED
Resolution, pixels: 2560x2560
Laser Rangefinder
Max. measuring range, m: 800
Measurement accuracy, m: ± 1
Safety class (IEC 60825-1:2014): 1
Wavelength, nm: 905
Video Recorder
Video / photo resolution, pixels: 1280x960
Video / photo format: .mp4 / .jpg
Built-in memory, GB: 64
Bluetooth
Wireless protocol: BLE 4.2
Wireless standard: IEEE 802.15.1
Frequency, GHz: 2.4
Wi-Fi
Wireless protocol: Wi-Fi
Wireless standard: IEEE 802.11 b/g/n/ac (WPA)
Frequency, GHz: 2.4 / 5
Environmental Characteristics
Degree of protection, IP code (IEC 60529): IPX7 (waterproof)
Operating temperature range, °C: -25 – +50
Connections and Compatibilities
Compatible mounts: Standard 30 mm rings
Supported applications: Stream Vision 2, Stream Vision Ballistics
Shock resistance on smooth-bore rifles, caliber: 12
Max. recoil power on rifled weapon (Eo), Joules: 6000
Power Supply
Output voltage, V: 3.0 – 4.2
Battery type: Dual Li-Ion Battery Pack – APS3 / 3200 mAh / DC 3.7 V (removable) and 4900 mAh / DC 3.7 V (built-in)
Capacity, mAh: 3200 (removable) + 4900 (built-in)
Operating time on battery pack, h (at t=22°C): 8
External power supply, V: 5V (USB Type-C)
Weight & Size
Body material: Aluminum alloy
Dimensions, mm: 442x84x98
Weight, kg: 1.2
SKU
76575
